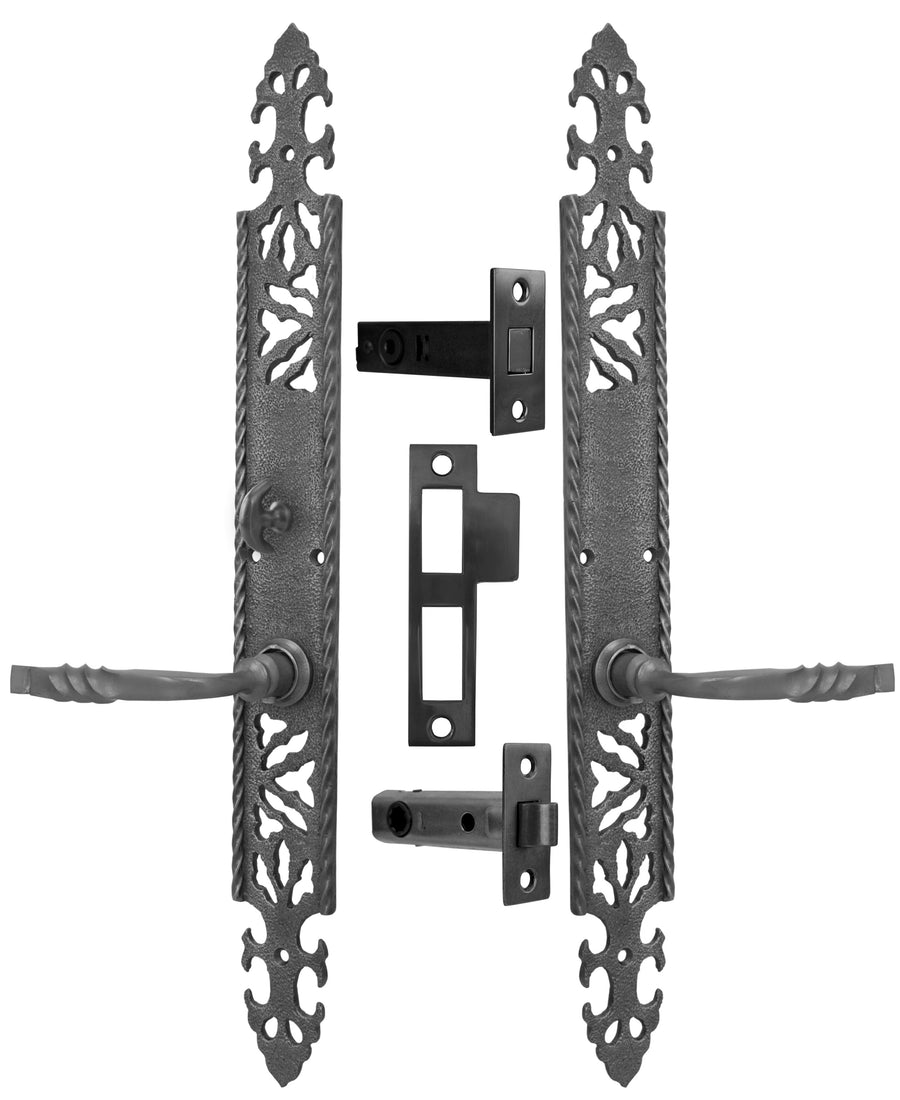

Gothic or Arts & Crafts Iron Door Plate Set with Locking Turnlatch (Z344PTSET1)

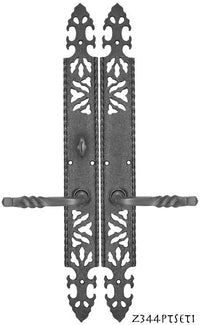

Z344PTSET1  Gothic or Arts and Crafts Interior Iron Door Set with Locking Privacy Turnlatch

Solid Iron interior door set.  Has a very Gothic, or Rustic, Arts and Crafts appeal.

This interior passage set locks from one side only using a turnlatch.  This set is for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

Each Set Includes:

• One Door Plate with "Lower Knob Only" Function
• One Doorplate with Turnlatch Function
• Two Lever Handles with the Connecting Spindle
• One Tubular Passage Latch
• One Tubular Deadbolt
• One Catchplate for Both Deadbolt and Passage Latch

Measurements:

• Door Plates:
  • Overall:  2" wide by 17 ¼" tall.
  • Thickness:  ⁵⁄₁₆"
  • Distance from the turnlatch stem to the center of the doorknob receiver is 2 ½".
• Lever Handles:
  • Length:  4 ³⁄₈"
  • Projection:  2 ¼"
  • Thickness:  ⁵⁄₈"
  • Base Diameter:  ¹¹⁄₁₆"
• Passage Latch:
  • Backset:  2 ³⁄₈"
  • Latch Face:  1" x 2 ¼"
  • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
• Deadbolt:
  • Backset:  2 ³⁄₈"
  • Case:  3 ¼" long x ¹³⁄₁₆" tall x ⁹⁄₁₆" deep.
  • Deadbolt Face:  2 ¼" x 1 ¹⁄₁₆"
• Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included for each piece of hardware in this set.
