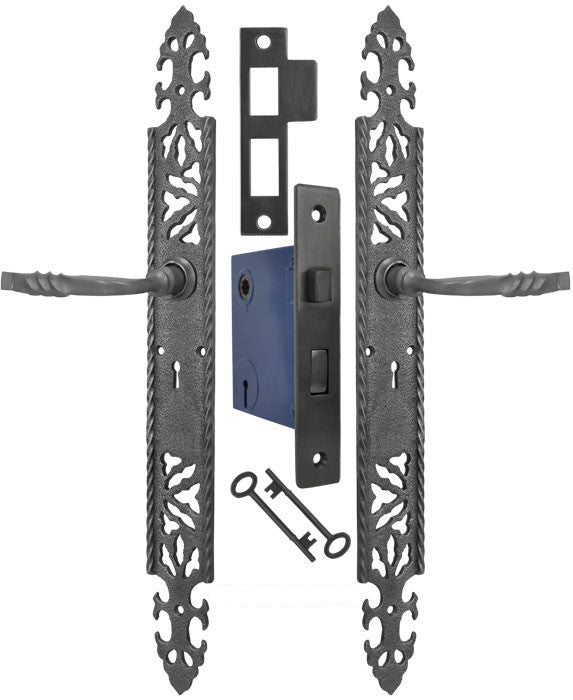

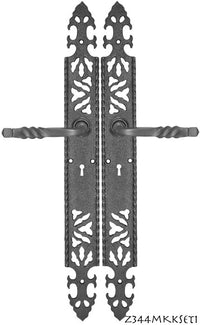

Gothic or Arts & Crafts Iron Door Plate Set with Mortise Lock (Z344MKKSET1)

Z344MKKSET1-1  Cast Iron Door Set with 2 ¼" Backset Mortise Lock
Z344MKKSET1-2  Cast Iron Door Set with 2 ⁵⁄₈" Backset Mortise Lock

Solid cast iron door set with a very Gothic, or rustic, Arts & Crafts appeal.

This Interior Mortise Passage Set locks from both sides using a skeleton key.

Each Set Includes:

• 2 Door Plates with Doorknob & Keyhole Function
• 2 Lever Handles with the Connecting Spindle
• 1 Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

• Door Plates:  2" wide by 17 ¼" long.  ⁵⁄₁₆" thick.
• Lever Handles:  4 ³⁄₈" long; ⁵⁄₈" thick; each projects 2 ¼".
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws are included for each piece of hardware in this set.
