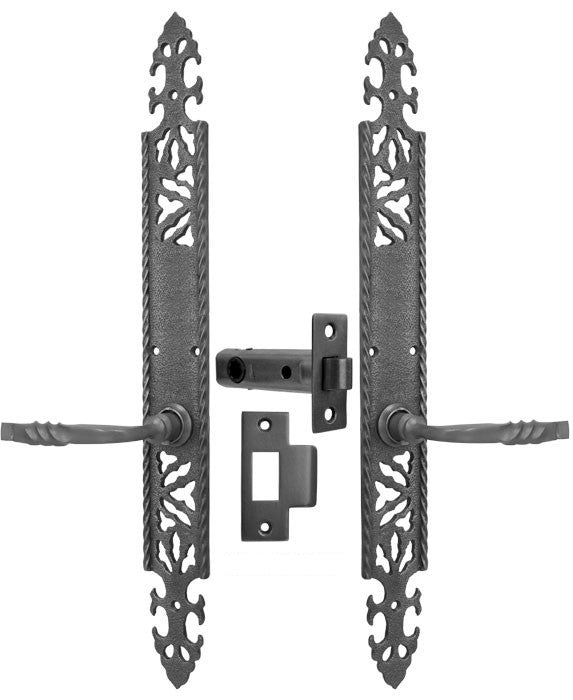

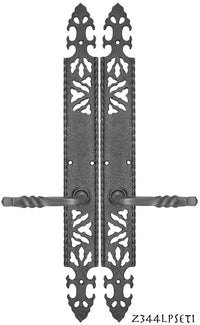

Gothic or Arts and Crafts Iron Door Plate Low Passage Set (Z344LPSET1)

Z344LPSET1  Cast Iron Low Lever Handle Passage Door Set with 2.375" Backset Latch

Solid iron interior passage door set.  An attractive design for Gothic, Rustic or Arts & Crafts décors.

This is an interior non-locking passage set.

The Set Includes:

• Two Door Plates with "Low Handle" Function
• Two Lever Handles with the Connecting Spindle
• One Tubular Passage Latch

Measurements:

• Door Plates:  17 ¼" tall x 2" wide.
• Lever Handles:  4 ³⁄₈" long; each projects 2 ¼".  ⁵⁄₈" thick handles.
• Tubular Passage Latch:
  • Backset:  2 ³⁄₈"
  • Latch Face:  1" wide x 2 ¼" tall.
  • Catch Plate:  1" wide x 2 ¾" tall.
  • Installation:  Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.

Mounting screws are included with the hardware for this set.
