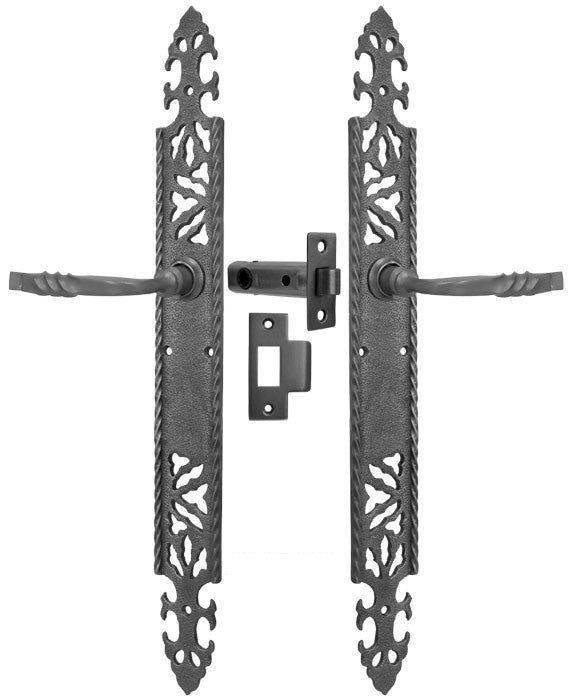

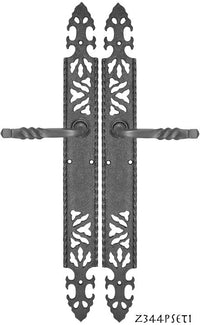

Gothic or Arts and Crafts Iron Door Plate Passage Set (Z344PSET1)

Z344PSET1  Iron Backplate & Lever Handle Passage Set with 2.375" Backset Door Latch

Solid iron interior passage door set.  Has a very Gothic, or Rustic, Arts and Crafts appeal.

This is an interior non-locking passage set.

The Set Includes:

• Two Door Plates with "Handle Only" Function
• Two Lever Handles with the Connecting Spindle
• One Tubular Passage Latch

Measurements:

• Door Plates:  17 ¼" tall x 2" wide.
• Lever Handles:  4 ³⁄₈" long; each projects 2 ¼".  ⁵⁄₈" thick handles.
• Tubular Passage Latch:
  • Backset:  2 ³⁄₈"
  • Latch Face:  1" wide x 2 ¼" tall.
  • Catch Plate:  1" wide x 2 ¾" tall.
  • Installation:  Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.

Mounting screws are included with the hardware for this set.
