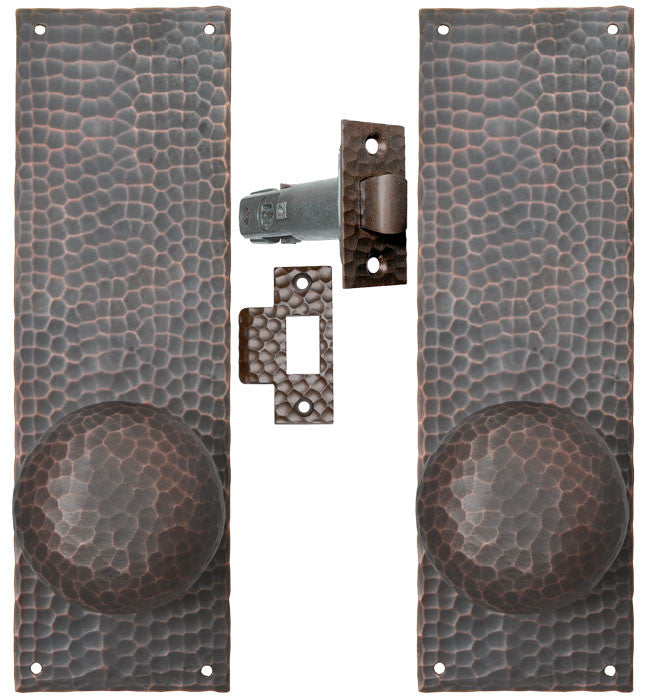

Arts & Crafts Hammered Copper Door Plate Tubular Low Knob Passage Set (ZC17LPSET1)

ZC17LPSET1  Arts & Crafts Hammered Copper Door Plate Tubular Passage Set

We don't mean just any Arts & Crafts style...each door plate is created by skilled craftsmen from sheet copper using hundreds of blows.  We put a darkened patina finish for a great Arts & Crafts or Mission look.

This is an interior non-locking passage set.

The Set Includes:

• Two Door Plates with "Low Knob" Function
• Two Door Knobs with the Connecting Spindle
• One Tubular Passage Latch

Measurements:

• Door Plates:  8" tall x 2 ½" wide.
• Doorknobs:  2 ³⁄₈" diameter; each projects 2 ¼".
• Tubular Passage Latch:
  • Backset:  2 ³⁄₈"
  • Latch Face:  1" wide x 2 ¼" tall.
  • Catch Plate:  1" wide x 2 ¾" tall.
  • Installation:  Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.

Mounting screws are included with the hardware for this set.

For 2 ¹⁄₈" pre-drilled doors, purchase our Modern Door Fit-Up Kit to stabilize the latch.
