Arts & Crafts Hammered Copper Door Plate Locking Tubular Passage Set (ZC17PTSET1)

ZC17PTSET1  Arts & Crafts Hammered Copper Door Plate Locking Tubular Privacy Set with 2 ³⁄₈" Backset

We don't mean just any Arts & Crafts style.  Each door plate is created by skilled craftsmen from sheet copper using hundreds of blows.  We put a darkened patina finish for a great Arts & Crafts or Mission look.

This is an interior privacy set that locks from one side using a turnlatch.

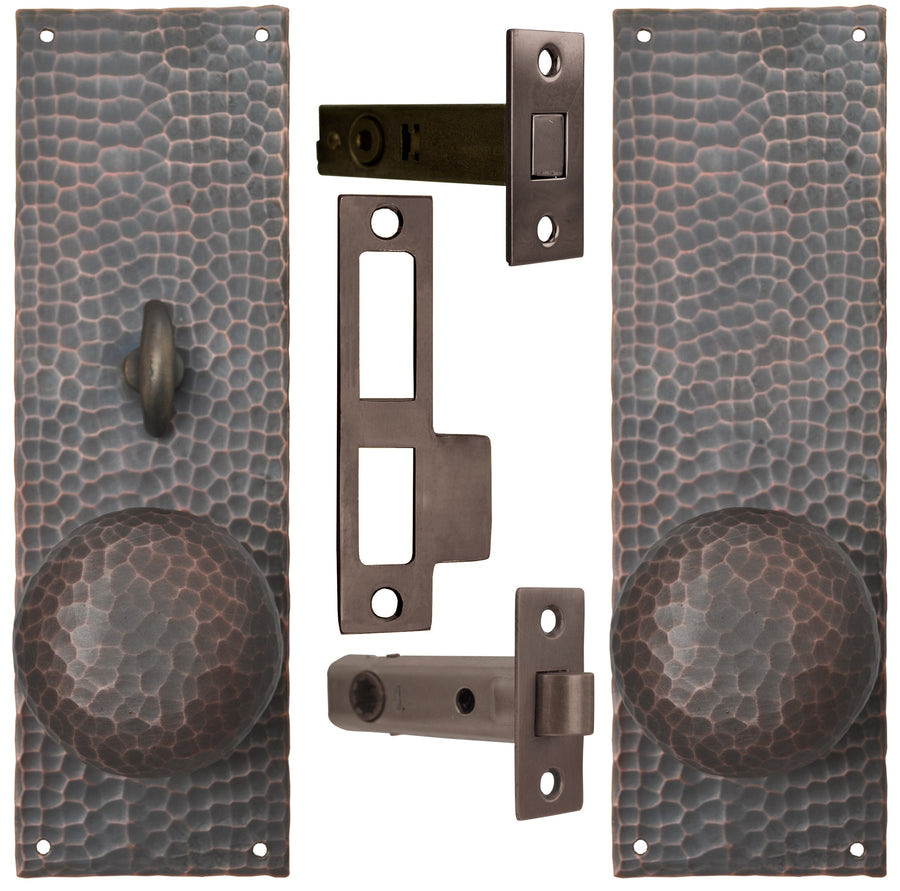

Each Set Includes:

• One Door Plate with "Lower Knob Only" Function
• One Door Plate with "Low Knob" and Turnlatch Function
• Two Doorknobs with the Connecting Spindle
• One Tubular Passage Latch
• One Tubular Deadbolt Latch
• One Catchplate for Both Deadbolt and Passage Latch

Measurements:

• Door Plates:  2 ½" wide x 8" tall.
• Doorknobs:  2 ³⁄₈" diameter; each projects 2 ¼".
• Passage Latch:
  • Face Plate:  1" wide x 2 ¼" tall.
  • Backset:  2 ³⁄₈"
  • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
• Tubular Deadbolt:
  • Face Plate:  1 ¹⁄₁₆" wide x 2 ¼" tall.
  • Case Length:  3 ¼" overall.
  • Backset:  2 ³⁄₈"
• Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included with all pieces of hardware in this set.
