Arts & Crafts Hammered Copper Door Plate Locking Turnlatch Mortise (ZC17MTSET1)

ZC17MTSET1-1  Arts & Crafts Door Set with 2 ¼" Backset Mortise Lock
ZC17MTSET1-2  Arts & Crafts Door Set with 2 ⁵⁄₈" Backset Mortise Lock

We don't mean just any Arts & Crafts style.  Each door plate is created by skilled craftsmen from sheet copper using hundreds of blows.  We put a darkened patina finish for a great Arts & Crafts or Mission look.

This Interior Mortise Privacy Set locks from one side using a turnlatch.

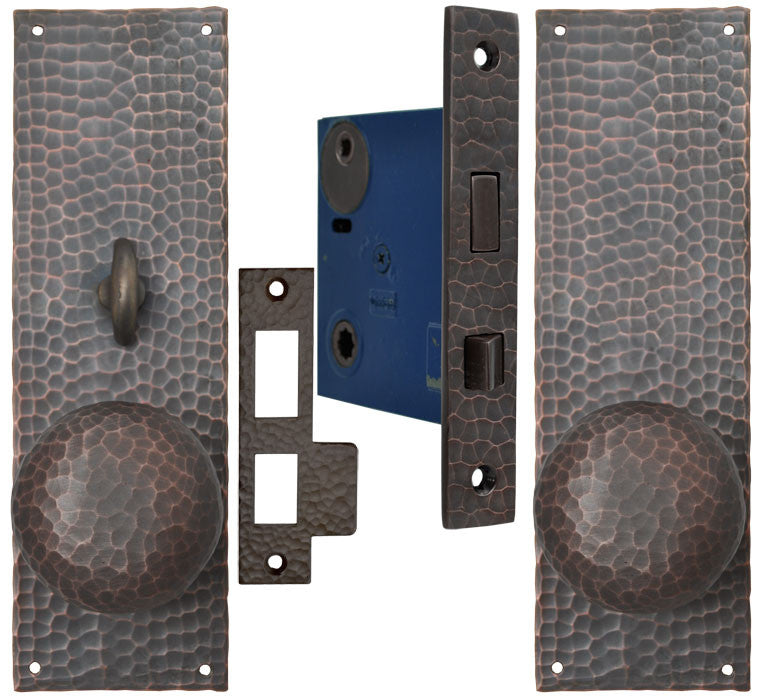

Each Set Includes:

• 1 Door Plate with Lower Doorknob Only Function
• 1 Door Plate with Lower Doorknob & Turnlatch Function
• 2 Doorknobs with the Connecting Spindle
• 1 Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

• Door Plates:  2 ½" wide by 8" long.
• Doorknobs:  2 ³⁄₈" diameter; each projects 2 ¼".
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws are included for each piece of hardware in this set.
