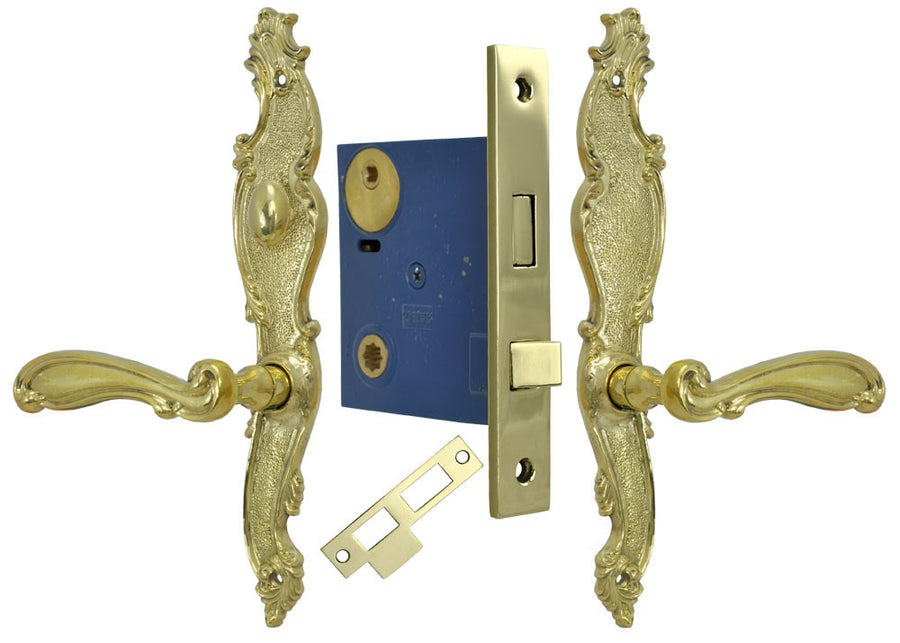

Victorian French Door Set with Turnlatch Mortise (Z342MTSET)

Z342MTSET-PB1  Polished Unlacquered Brass with 2 ¼" Backset Mortise Lock
Z342MTSET-PB2  Polished Unlacquered Brass with 2 ⁵⁄₈" Backset Mortise Lock

Z342MTSET-DK1  Antique Brass Finish with 2 ¼" Backset Mortise Lock
Z342MTSET-DK2  Antique Brass Finish with 2 ⁵⁄₈" Backset Mortise Lock

Z342MTSET-OB1  Oil Rubbed Bronze Finish with 2 ¼" Backset Mortise Lock
Z342MTSET-OB2  Oil Rubbed Bronze Finish with 2 ⁵⁄₈" Backset Mortise Lock

This sinuous French doorplate and lever handle set is a nice size for doors with narrow stiles.

Solid yellow brass, with fine details retained through lost wax casting.

The lever handles are a popular choice for ADA regulation entries.

This door set is hand finished in a choice of any of the five finishes listed in the "Options" menu above.

The interior mortise privacy set locks from one side only using a turnbolt operator.

The Complete Set Includes:

• One Door Plate with Doorknob & Turnlatch Function
• One Door Plate with Lower Doorknob Only Function
• Two Doorknobs with the Connecting Spindle
• One Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

• Door Plates:  2" wide x 10" tall.
• Lever Handles:  4 ³⁄₈" handle length x 1" wide;  each projects 2 ¹⁄₈".
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws for all hardware will be supplied.
