Victorian French Door Set with Turnlatch (Z342PTSET)

Z342PTSET-PB  Polished Unlacquered Brass French Louis Style Interior Locking Passage Set

Z342PTSET-DK  Antique Brass Finish French Louis Style Interior Locking Passage Set

Z342PTSET-OB  Oil Rubbed Bronze Finish French Louis Style Interior Locking Passage Set

Z342PTSET-RB  Red Bronze Finish French Louis Style Interior Locking Passage Set

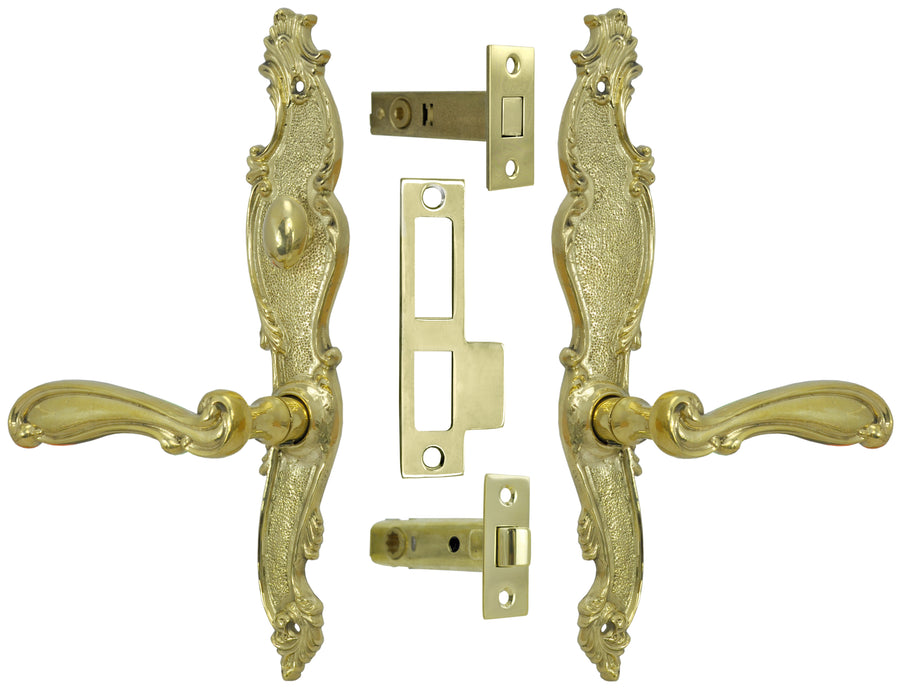

Solid brass French Louis style doorset, which includes a pair of scrolling design lever handles.

This set is an interior privacy set that locks from one side using a turnlatch.  Ideal for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

This complete door set is available in multiple finishes.  Selections can be made by using the "Options" menu above.

The Set Includes:

• One Door Plate with Lower Lever Handle Only Function
• One Door Plate with Lever Handle and Turnlatch Function
• Two Lever Handles with the Connecting Spindle
• One Tubular Passage Latch
• One Tubular Deadbolt Latch
• One Catchplate for Both Deadbolt and Passage Latch

Measurements:

• Door Plates:  2" wide x 10" tall.
• Lever Handles:  4 ³⁄₈" long x 1" wide; each projects 2 ¹⁄₈".
• Passage Latch:
  • Face Plate:  1" wide x 2 ¼" tall.
  • Backset:  2 ³⁄₈"
  • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
• Tubular Deadbolt:
  • Face Plate:  1 ¹⁄₁₆" wide x 2 ¼" tall.
  • Case Length:  3 ¼" overall.
  • Backset:  2 ³⁄₈"
• Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included with all pieces of hardware in this set.
