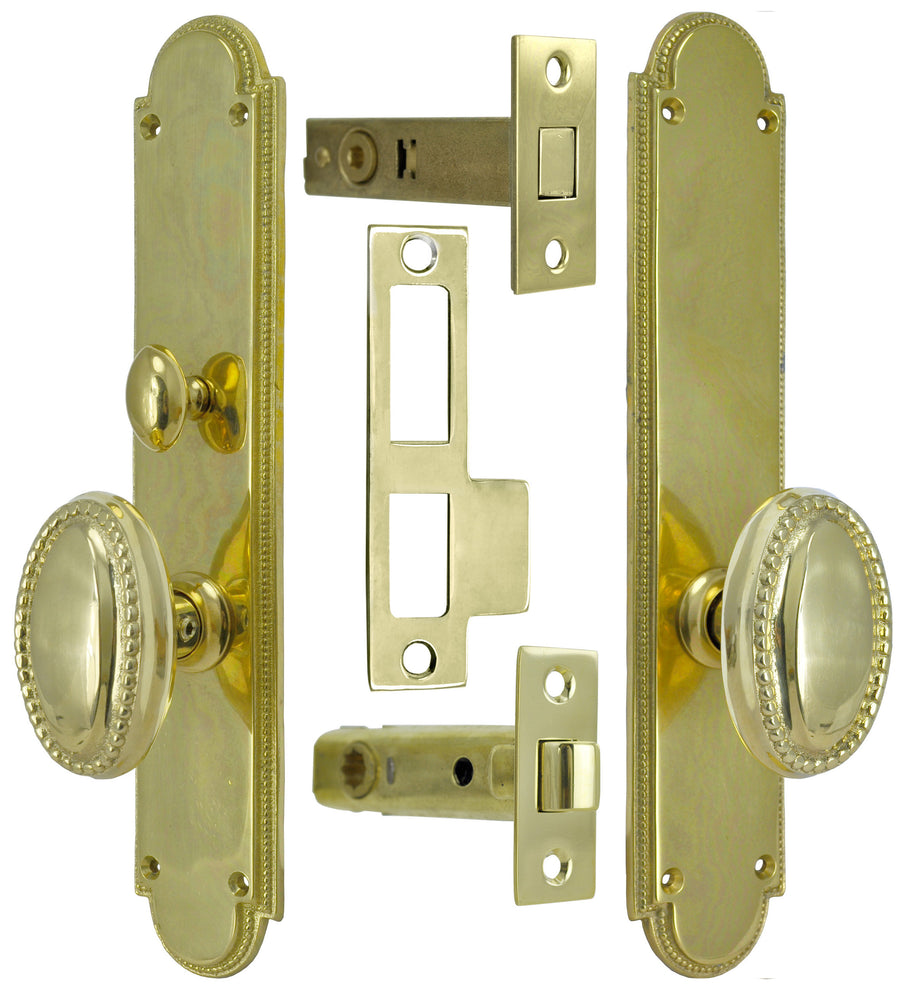

Modern Beaded Edge Door Plate Tubular Passage Set with Locking Turnlatch (L49PTSET)

L49PTSET-PB  Polished Unlacquered Brass Tubular Door Set with 2 ³⁄₈" Backset {PICTURED}

L49PTSET-DK  Antique Brass Finish Tubular Door Set with 2 ³⁄₈" Backset

L49PTSET-NP  Nickel Plated Tubular Door Set with 2 ³⁄₈" Backset {PICTURED}

L24PTSET-OB  Oil Rubbed Bronze Finish Tubular Door Set with 2 ³⁄₈" Backset

Nice classic arched doorplate set, complete with oval beaded edge doorknobs and tubular lock & latch.  The simplicity of this design would complement a range of décors, from Art Deco to Contemporary.

The complete door set is available in Polished Unlacquered Brass (which will develop a natural patina over time), or our hand-finished, mellow brown, Antique Brass Finish.  Also available in Nickel Plated {Pictured}, or our matte black Oil Rubbed Bronze Finish.

This is an interior tubular privacy set which locks from one side using a turnlatch.

Each Set Includes:

• 1 Doorplate with Lower Knob Only Function
• 1 Doorplate with Turnlatch Function
• 2 Doorknobs with the Connecting Spindle
• 1 Tubular Passage Latch
• 1 Tubular Deadbolt Latch
• 1 Catchplate for Both Deadbolt and Passage Latch

Measurements:

• Door Plates:  2" wide x 10 ½" tall.
• Doorknobs:  2 ¾" tall x 1 ¾" wide; each projects 2 ¼".
• Passage Latch:
  • Backset:  2 ³⁄₈"
  • Latch Face:  1" x 2 ¼"
  • Latch can be installed by drilling a ⁷⁄₈" hole, then recessing the wood for the 1"x 2 ¼" latch face.
• Deadbolt:
  • Backset:  2 ³⁄₈"
  • Case:  3 ¼" long x ¹³⁄₁₆" tall x ⁹⁄₁₆" deep.
  • Deadbolt Face:  2 ¼" x 1 ¹⁄₁₆"
• Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included for each piece of hardware in this set.
