Modern Beaded Edge Door Plate Set with Locking Turnlatch Mortise (L49MTSET)

L49MTSET-PB1  Polished Unlacquered Brass Door Set with 2 ¼" Backset Mortise Lock
L49MTSET-PB2  Polished Unlacquered Brass Door Set with 2 ⁵⁄₈" Backset Mortise Lock

L49MTSET-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L49MTSET-DK2  Antique Brass Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock

L49MTSET-NP1  Nickel Plated Door Set with 2 ¼" Backset Mortise Lock
L49MTSET-NP2  Nickel Plated Door Set with 2 ⁵⁄₈" Backset Mortise Lock

L49MTSET-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L49MTSET-OB2  Oil Rubbed Bronze Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock

Nice classic arched doorplate set, complete with oval beaded edge doorknobs and turnlatch mortise lock.  The simplicity of this design would complement a range of décors, from Art Deco to Contemporary.

The complete door set is available in Polished Unlacquered Brass (which will develop a natural patina over time), or our hand-finished, mellow brown, Antique Brass Finish.  Also available in Nickel Plated (pictured), or our matte black Oil Rubbed Bronze Finish.

This Interior Mortise Privacy Set locks from one side using a turnlatch.

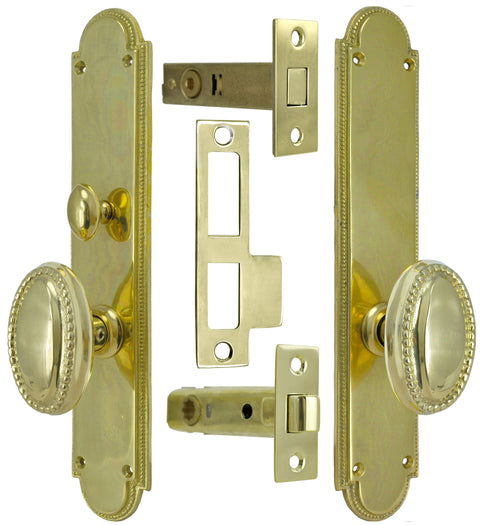

Each Set Includes:

• 1 Door Plate with Lower Doorknob Only Function
• 1 Door Plate with Lower Doorknob & Turnlatch Function
• 2 Doorknobs with the Connecting Spindle
• 1 Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

• Door Plates:  2" wide x 10 ½" tall.
• Doorknobs:  2 ¾" tall x 1 ¾" wide; projects 2 ¼".
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws for all hardware will be supplied.
