Windsor Pattern Double Door Entry Set with Swing Cylinder Cover (Z26DBS2)
Z26DBS2 Windsor Pattern Double Door Entry Set with Swing Cylinder Cover
In the 1880's one of the finest hardware companies was Reading Hardware . Windsor was their most popular pattern, and they produced Victorian hardwarefor throughout the home in that design.
Windsor Pattern Hardware is lost wax cast of solid brass, then antique finished & lacquered.

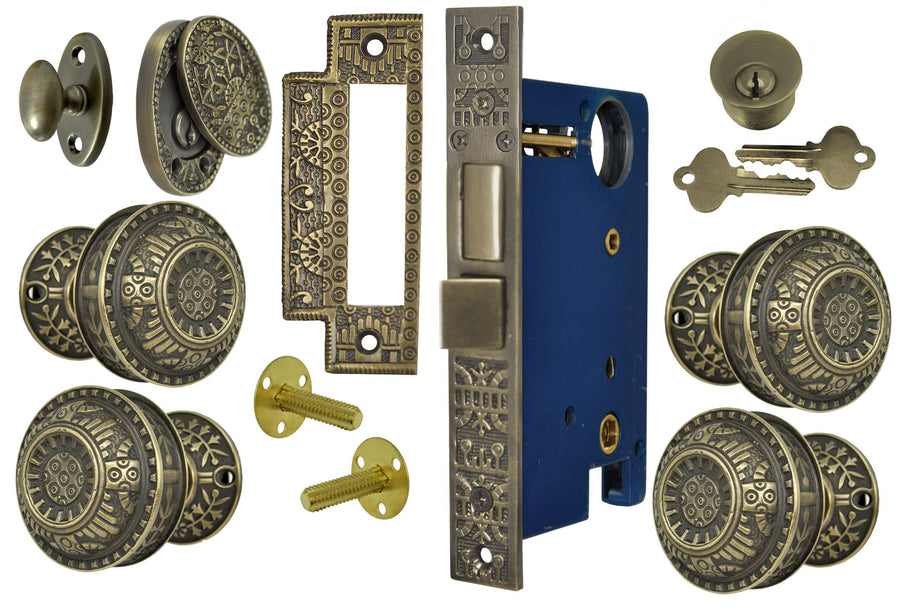

The complete door set includes:
- Four Doorknob Rosettes
- Four Solid Brass Doorknobs
- Two Dummy Spindles
- Swinging Cylinder Cover
- Mortise Lock with connecting spindle
- Cylinder Lock: See our Lock Cylinder Size Chart to select the correct cylinder length for your door.
- Turnlatch
Set Measurments:
Rosettes: 2 1/8" Diameter
Doorknobs: 2 1/8" diameter by 2" tall.
Lock: Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.
Lock face is 1" wide by 7 1/2" long. Backset is 2 1/2", including the thickness of the face plate. Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2". Catch plate is 4 7/8" long by 1 7/8".
Cylinder Cover: Measures 2 1/2" long by 1 3/4" wide. Cylinder hole for standard 1.156" (1 5/32") cylinder dia.
Turnlatch: Square shaft measures 3/16" in diameter, and is 7/8" long. Knob measures 1 1/8" tall by 3/4" wide. Backplate measures 2" tall by 1 1/8" wide.
