Victorian Style Windsor Pattern Small Plate Door Set with Turnlatch Mortise (Z27MTSET3)
Interior Privacy Petite Windsor Pattern Doorset
with Doorknobs and Mortise Lock with Turnbolt Function
Z27MTSET3-DK1 Antique Brass Finish with 2 ¼" Backset Mortise Lock
Z27MTSET3-DK2 Antique Brass Finish with 2 5⁄8" Backset Mortise Lock
Z27MTSET3-OB1 Oil Rubbed Bronze Finish with 2 ¼" Backset Mortise Lock
Z27MTSET3-OB2 Oil Rubbed Bronze Finish with 2 5⁄8" Backset Mortise Lock
Around 1885, Reading Hardware Company produced the very popular Windsor door hardware line. The finest Victorian homes rushed to upgrade to the stylish design.
This door set is hand finished in a choice of our Antique Brass Finish (pictured) or our matte black Oil Rubbed Bronze Finish.
The interior mortise privacy set locks from one side only using a turnbolt operator.

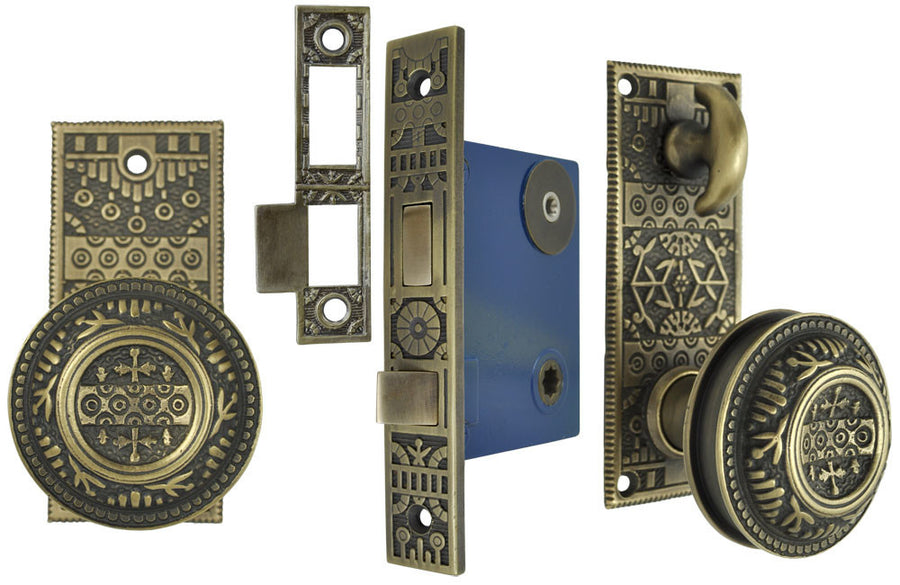

The Complete Set Includes:
- One Door Plate with Doorknob & Turnlatch Function
- One Door Plate with Doorknob Only Function
- Two Doorknobs with the Connecting Spindle
- One Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 5⁄8" backset)
Measurements:
- Door Plate with Turnlatch: 4 1⁄8" tall x 1 5⁄8" wide.
- "Knob Only" Door Plate: 3 15⁄16" tall x 1 5⁄8" wide.
- Doorknobs: 2 1⁄8" diameter; each projects 2".
-
Mortise Locks:
-
2 ¼" Backset Lock:
- Lock Body: 3 ¾" tall x 2 7⁄8" deep x 5⁄8" thick.
- Faceplate: 1" wide x 6" tall; 3⁄16" thick.
- Strike Plate: 4 ½" tall x 1" wide (plus tongue).
- Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
-
2 5⁄8" Backset Lock:
- Lock Body: 3 ¾" tall x 3 3⁄16" deep, and 5⁄8" thick.
- Faceplate: 1" wide x 6" tall; 3⁄16" thick.
- Strike Plate: 4 ½" tall x 1" wide (plus tongue).
- Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
-
2 ¼" Backset Lock:
Set can be flipped with the turnlatch above the doorknob or below the doorknob.
Mounting screws for all hardware will be supplied.
