Victorian Scallop Design Single Entry Door Set (L28SET)

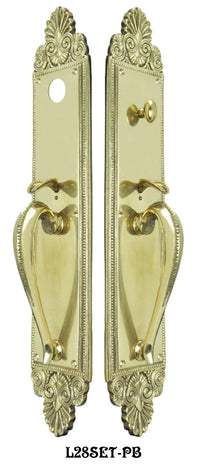

L28SET-PB  Polished Unlacquered Brass Palladian Door Plate Entry Set

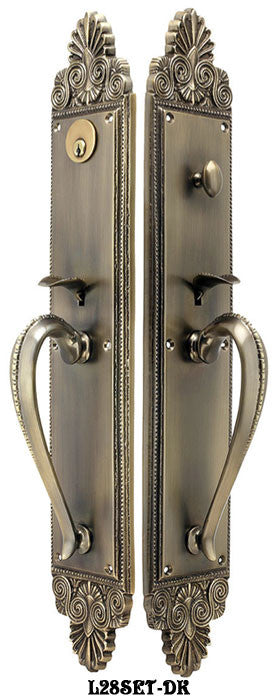

L28SET-DK  Antique Brass Finish Palladian Door Plate Entry Set{PICTURED}

Photos don't do this magnificent entry plate justice.  Finely detailed beadwork, plus a scallop-shell top design, executed in lost-wax cast brass.

This Complete Entry Door Set (for One Door Only) is available in two finishes:  Polished Unlacquered Brass and Antique Brass Finish.

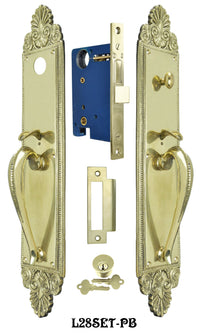

The complete door set includes all pictured hardware:

1. Interior Door Plate
2. Exterior Door Plate
3. Mortise Lock
4. Cylinder Lock.


   See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Doorplate Measurements:

• 4" wide by 21 ¹⁄₈" long.
• The distance from the center of the cylinder receiver to the thumb latch stem is 4 ¾".

Mortise Lock Measurements:

• Body measures 5 ½" tall by 3 ⁵⁄₈" deep.  ¹³⁄₁₆" thickness.
• Lock face is 1" wide by 7 ½" long.
• Backset is 2 ½", including the thickness of the face plate.
• Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ½".
• Catch plate is 4 ⁷⁄₈" long by 1 ⁷⁄₈".
