Victorian Rococo Yale Pattern with Lever Handle Set with Locking Turnlatch (L15PTSET3)
Rococo Yale Pattern Lever Handle Tubular Door Set
with Locking Privacy Turnlatch - 2 3⁄8" Backset

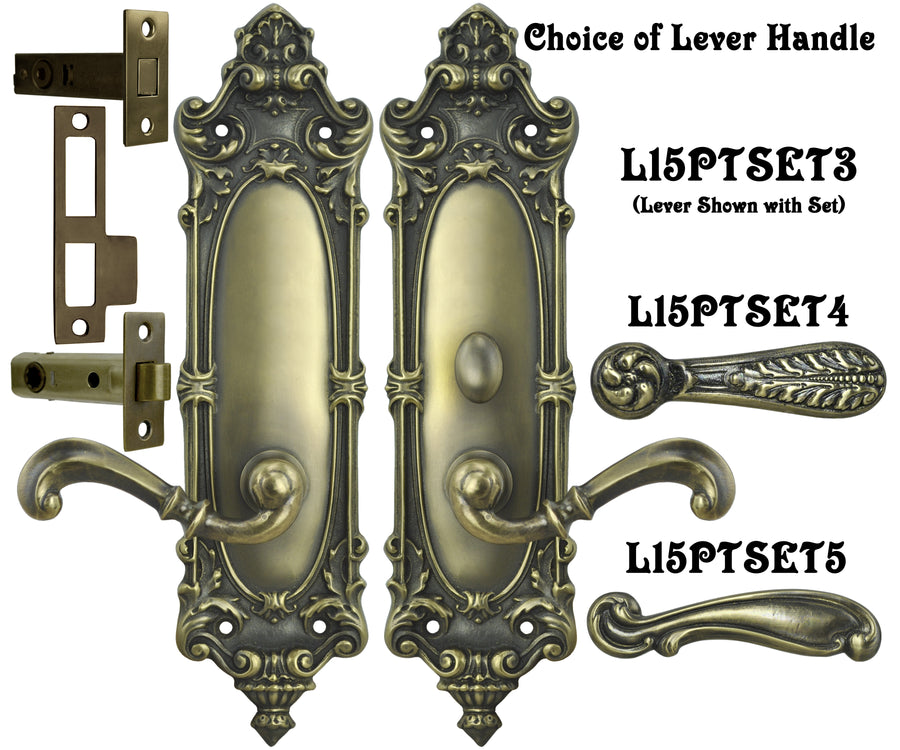

Please See 1st Photo for Lever Handle Options...Make Selection Using the Options Menu Above
Beautiful Yale Pattern of the Rococo Revival Victorian era, paired with well-detailed Gothic doorknobs. Solid yellow brass with fine details retained through lost wax casting.
This interior privacy set locks from one side using a turnlatch. This set is ideal for those who don't want to mortise out a door for a full mortise box. Instead, this set comes with a tubular passage latch and a tubular deadbolt.
This complete door set is available in Polished Unlacquered Brass, or hand-finished in our Antique Brass Finish {Pictured}. Also available in our matte black Oil Rubbed Bronze Finish.
The Set Includes:
- One Door Plate with Lower Knob Only Function
- One Door Plate with Knob and Turnlatch Function
- Two Doorknobs with the Connecting Spindle
- One Tubular Passage Latch
- One Tubular Deadbolt Latch
- One Catchplate for Both Deadbolt and Passage Latch
Measurements:
- Door Plates: 3 3⁄8" wide by 12 ½" tall.
-
Lever Handles:
- SET3: 4 3⁄8" long; projects 2 3⁄8". Base diameter is ¾".
- SET4: 3 ¾" handle length x 1" width by 2 ¼" projection. Base diameter is 5⁄8".
- SET5: 4 3⁄8" handle length x 1" width by 2 1⁄8" projection. Base diameter is 5⁄8".
-
Passage Latch:
- Face Plate: 1" wide x 2 ¼" tall.
- Backset: 2 3⁄8"
- Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
-
Tubular Deadbolt:
- Face Plate: 1 1⁄16" wide x 2 ¼" tall.
- Case Length: 3 ¼" overall.
- Backset: 2 3⁄8"
- Catchplate: 4 ½" tall x 1" wide (minus tongue).
Mounting screws are included with all pieces of hardware in this set.
