Victorian Heraldic Door Plate with Large Lion Knob Set and Locking Turnlatch (L26PTSET1)

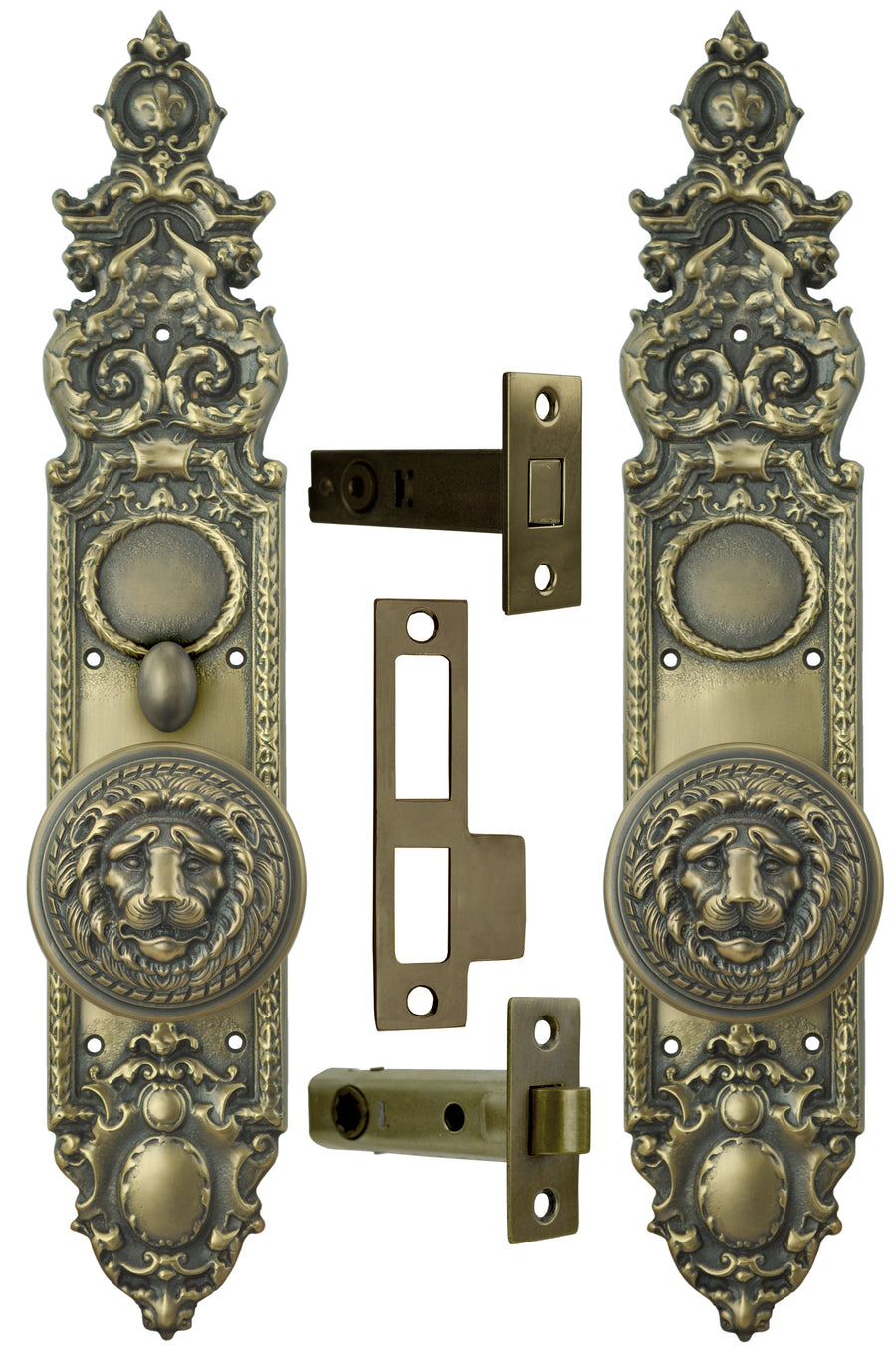

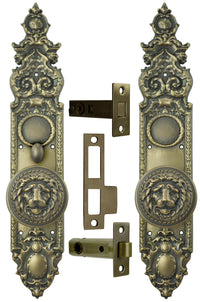

L26PTSET1-DK  Antique Brass Finish Victorian Heraldic Door Set w/ Locking Turnlatch {PICTURED}

L26PTSET1-OB  Oil Rubbed Bronze Finish Victorian Heraldic Pattern Door Set w/ Locking Turnlatch

Victorian style heraldic door plates, paired with VERY large and impressive reproduction Schlage Large Lion Head doorknobs.  Each knob weighs in at about 1 ½" pounds!  Doorplates and doorknobs are lost wax cast in solid brass.

This set is an interior privacy set that locks from one side using a turnlatch.  Ideal for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

This complete door set is available in our hand-finished Antique Brass Finish {Pictured}, or our matte black Oil Rubbed Bronze Finish.

The Set Includes:

• One Door Plate with Lower Knob Only Function
• One Door Plate with Knob and Turnlatch Function
• Two Doorknobs with the Connecting Spindle
• One Tubular Passage Latch
• One Tubular Deadbolt Latch
• One Catchplate for Both Deadbolt and Passage Latch

Measurements:

• Door Plates:  3 ¹⁄₈" wide x 17" tall.
• Doorknobs:  3 ³⁄₈" diameter.  Each projects 2 ⁷⁄₈".
• Passage Latch:
  • Face Plate:  1" wide x 2 ¼" tall.
  • Backset:  2 ³⁄₈"
  • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
• Tubular Deadbolt:
  • Face Plate:  1 ¹⁄₁₆" wide x 2 ¼" tall.
  • Case Length:  3 ¼" overall.
  • Backset:  2 ³⁄₈"
• Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included with all pieces of hardware in this set.
