Victorian Corbin Roanoke Door Plate Passage Set with Locking Turnlatch (L109PTSET)

L109PTSET-PB  Polished Unlacquered Brass Tubular Door Set with 2 ³⁄₈" Backset

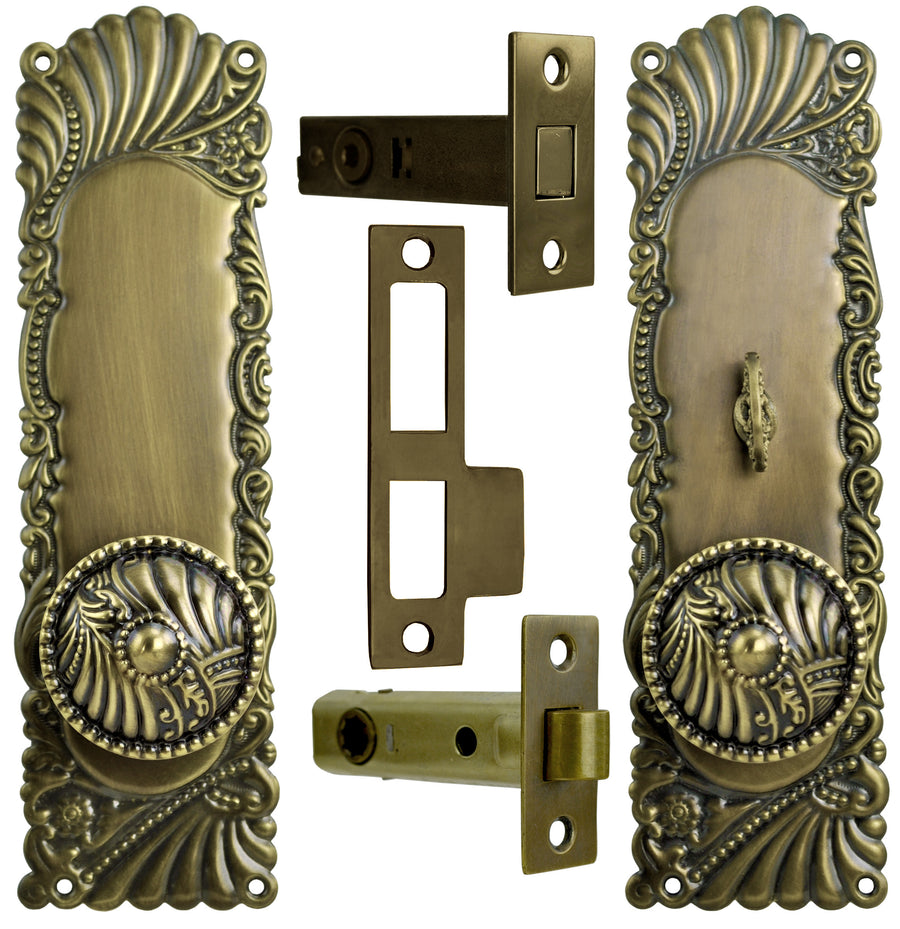

L109PTSET-DK  Antique Brass Finish Tubular Door Set with 2 ³⁄₈" Backset {PICTURED}

L109PTSET-OB  Oil Rubbed Bronze Finish Tubular Door Set with 2 ³⁄₈" Backset

Large Corbin's Roanoke door plate set.  Finely wrought, just like Corbin did in the 1900s.  The design is just so precise and attractive, that it takes a bit of study to see all the design elements crowded onto this plate.

This interior tubular privacy set locks from one side using a turnlatch.  This set is for those who don't want to mortise out a door for a full mortise box lock.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

The complete door set is available in Polished Unlacquered Brass (which will develop a natural patina over time), or our hand-finished, mellow brown, Antique Brass Finish {PICTURED}.  Also available in our matte black Oil Rubbed Bronze Finish.

Each Set Includes:

• 1 Doorplate with Lower Knob Only Function
• 1 Doorplate with Turnlatch Function
• 2 Doorknobs with the Connecting Spindle
• 1 Tubular Passage Latch
• 1 Tubular Deadbolt Latch
• 1 Catchplate for Both Deadbolt and Passage Latch

Measurements:

• Doorplates:  2 ¾" wide x 10" tall.
• Doorknobs:  2 ¼" diameter; each projects 2 ³⁄₈".
• Passage Latch:
  • Backset:  2 ³⁄₈"
  • Latch Face:  1" x 2 ¼"
  • Latch can be installed by drilling a ⁷⁄₈" hole, then recessing the wood for the 1"x 2 ¼" latch face.
• Deadbolt:
  • Backset:  2 ³⁄₈"
  • Case:  3 ¼" long x ¹³⁄₁₆" tall x ⁹⁄₁₆" deep.
  • Deadbolt Face:  2 ¼" x 1 ¹⁄₁₆"
• Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included for each piece of hardware in this set.
