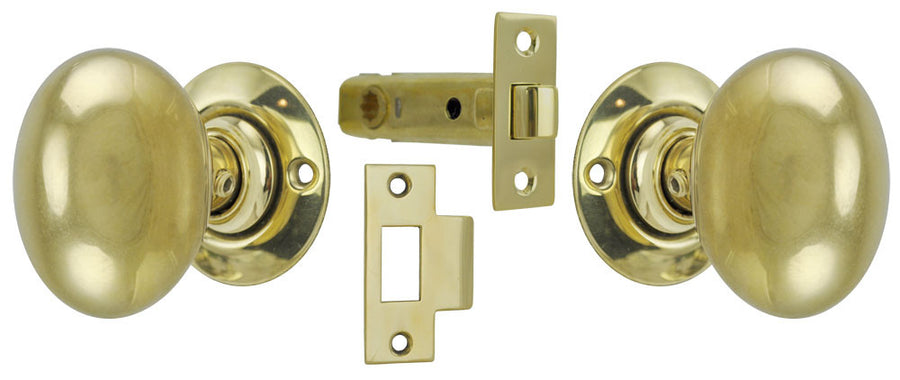

Solid Brass Tubular Passage Door Set (L146PSET1)

L146PSET1  Polished Unlacquered Solid Brass Tubular Passage Door Set {PICTURED}

LDK146PSET1  Antique Brass Finish Solid Brass Tubular Passage Door Set

LN146PSET1  Nickel Plated Solid Brass Tubular Passage Door Set {PICTURED}

LOB146PSET1  Oil Rubbed Bronze Finish Solid Brass Tubular Passage Door Set

This is an interior non-locking passage set.

The Set Includes:

• Two Rosettes
• Two Doorknobs with the Connecting Spindle
• One Tubular Passage Latch

Measurements:

• Rosettes:  2 ¹⁄₈" diameter overall.
• Oval Doorknobs:  2 ³⁄₈" tall x 1 ⁹⁄₁₆" wide; each projects 2 ³⁄₈".
• Passage Latch:
  • Backset:  2 ³⁄₈"
  • Latch Face:  1" x 2 ¼"
  • Catch Plate: 1" wide x 2 ¾" tall.
  • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.

Mounting screws are included for each item in this set.
