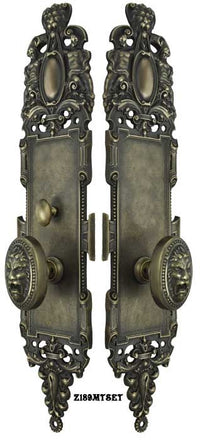

Roaring Lion Door Plate Passage Set with Locking Turnlatch (Z189MTSET)

Z189MTSET-DK1  Antique Brass Finish with 2 ¼" Backset Mortise Lock
Z189MTSET-DK2  Antique Brass Finish with 2 ⁵⁄₈" Backset Mortise Lock

Z189MTSET-OB1  Oil Rubbed Bronze Finish with 2 ¼" Backset Mortise Lock
Z189MTSET-OB2  Oil Rubbed Bronze Finish with 2 ⁵⁄₈" Backset Mortise Lock

VERY impressive!  This doorset is a reproduction of the "Pavia" pattern roaring lion doorknobs and backplates by P.F. Corbin, which can be seen in their Circa 1900 catalog.  The design of the impressive backplates includes two full-figured cherubs flanking a lion's head.  The backplates, paired with the oval roaring lion doorknobs, give this set a very classical Roman presence.

This complete door set is hand finished in a choice of our Antique Brass Finish (pictured) or our matte black Oil Rubbed Bronze Finish.

The interior mortise privacy set locks from one side only using a turnlatch operator.

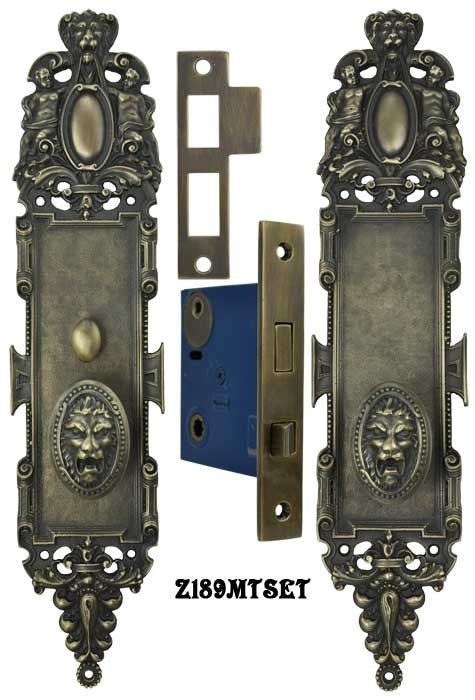

The Complete Set Includes:

• One Door Plate with Doorknob & Turnlatch Function
• One Door Plate with Lower Doorknob Only Function
• Two Doorknobs with the Connecting Spindle
• One Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

• Door Plates:  4" wide x 18" tall.
• Doorknobs:  2 " wide x 2 ⁷⁄₈" tall; each projects 2 ³⁄₈".
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws for all hardware will be supplied.
