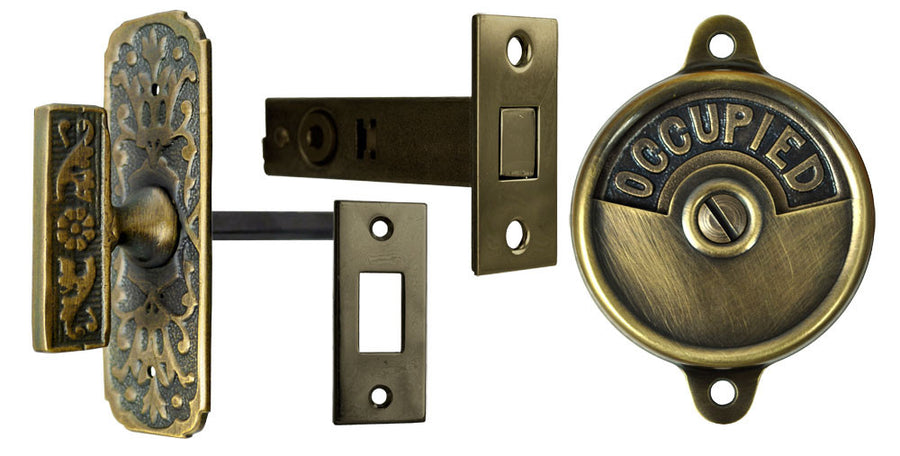

Occupied/Open Bathroom Privacy Latch with Narrow Victorian Turnlatch (ZLW-43D)

ZLW-43D  Polished Unlacquered Brass Occupied/Open Bathroom Tubular Privacy Latch With Narrow Victorian Turnlatch Set

ZLW-DK43D  Antique Brass Finish Occupied/Open Bathroom Tubular Privacy Latch With Narrow Victorian Turnlatch Set

ZLW-OB43D  Oil Rubbed Bronze Finish Occupied/Open Bathroom Tubular Privacy Latch With Narrow Victorian Turnlatch Set

This latch has a "turn knob" for the inside of the door, connecting to an indicator dial for the outside of the door.  The indicator dial turn says 'OCCUPIED' in the locked position, and 'OPEN' in the unlocked position.

This handle works well for double doors, and with swinging doors.  Steel shaft supplied.

Turn Knob Measurements:  1" by 3"

Tubular Deadbolt Measurements:  Overall case length is 3 ¼"; backset is 2 ³⁄₈".  Deadbolt face measures 2 ¼" x 1 ¹⁄₁₆".

Indicator Dial Diameter:  2 ¼" in diameter; the screw flags add to the height, making it 3 ¼".

This set can accommodate doors up to 2" thick.

Have a thicker door?  We can customize this set for your project needs.  Please contact us for pricing.
