Narrow Lockset with Knobs for Small Backset Doors (L79SET-2)

L79SET-2PB  Polished Unlacquered Brass Narrow Lock Set with Door Knobs

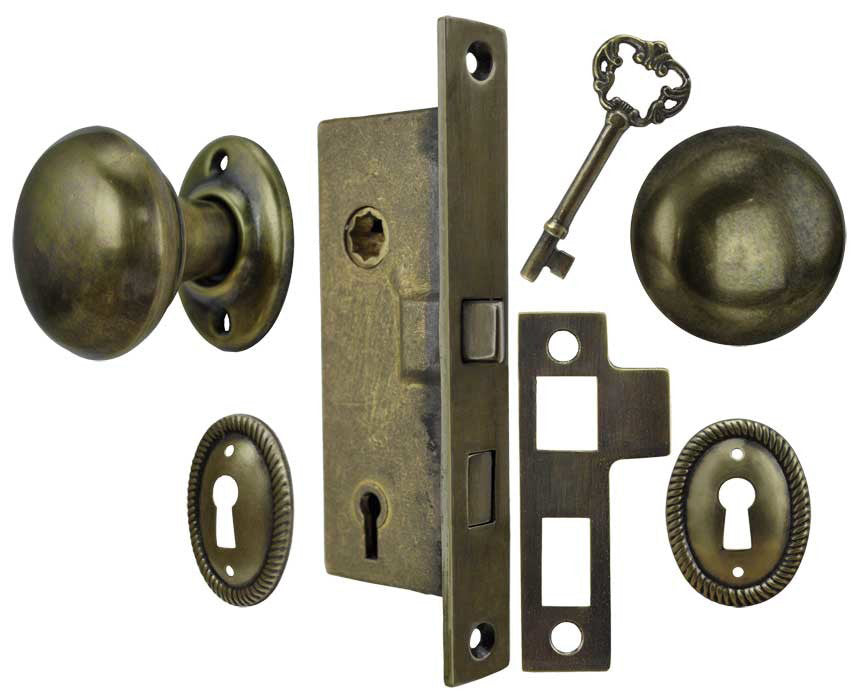

L79SET-2DK  Antique Brass Finish Narrow Lock Set with Door Knobs (Pictured)

L79SET-2OB  Oil Rubbed Bronze Finish Narrow Lock Set with Door Knobs

This lock set is made for narrow doors that don't have enough room for standard backset locks.

With a 1" backset, you can use this lock set with doors that have trim or glass that keep you from using standard backset locks.

Set uses a skeleton key lock for a vintage charm.

This lock set includes:

• One narrow 1" back set lock with skeleton key function.
• Two small doorknob rosettes.
• Two small door knobs with connecting spindle.
• Two keyhole escutcheons.

Set Measurements:

• Lock Measurements:
  • Lock Case:  4" tall x 1 ½" wide.  ½" thick.
  • Center-to-Center:  2 ¼"
  • Lock Face:  5 ¼" tall x ¾" wide.
  • Catch Plate:  3" tall x ¾" wide, less the tongue.
• Rosettes:
  • 1 ¾" x 1 ³⁄₈".
• Doorknobs:
  • 1 ¾" diameter by 1 ¾" tall.
• Spindle:
  • Normal 3/8" thread doorknob spindle with a length of 4 ½".  Diameter is ¼"; 16 threads per inch.
• Keyholes:
  • 1 ½" tall x 1 ¹⁄₈" wide.

Mounting screws are included with the hardware for this set.
