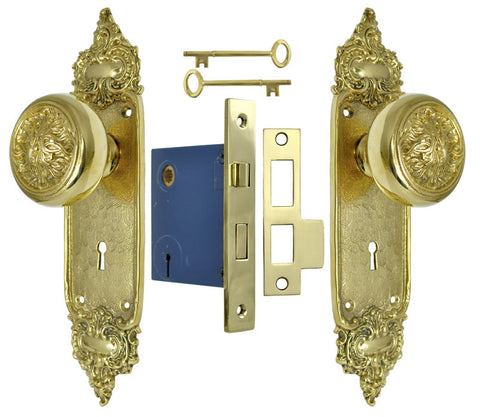

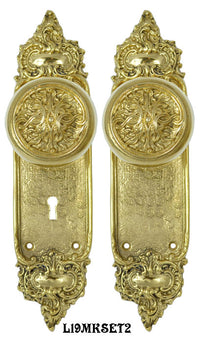

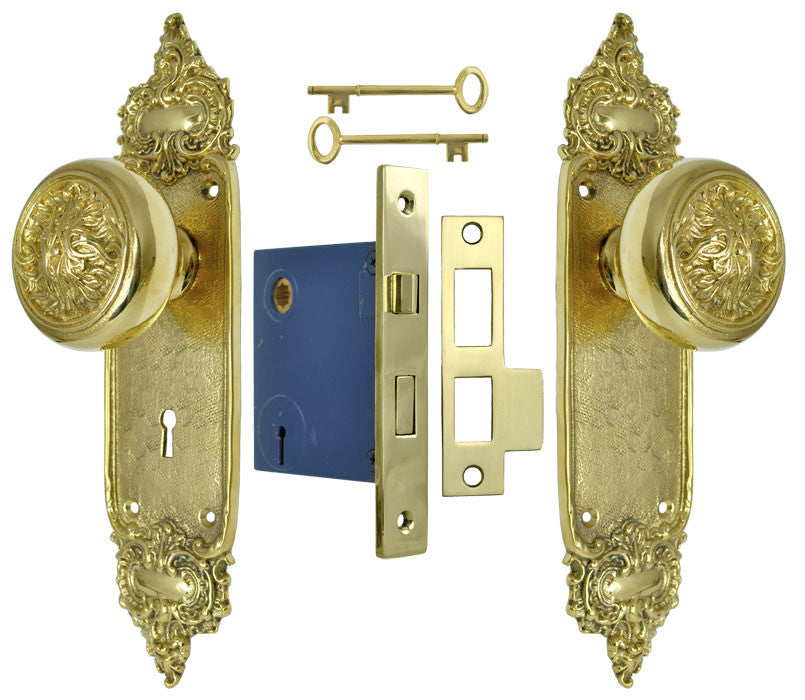

Louis Style Door Plate Set with Fancy Scroll Design Doorknobs and Locking Keyed Mortise (L19MKSET2)

L19MKSET2-PB1  Polished Unlacquered Brass Door Set with 2 ¼" Backset Mortise Lock
L19MKSET2-PB2  Polished Unlacquered Brass Door Set with 2 ⁵⁄₈" Backset Mortise Lock

L19MKSET2-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L19MKSET2-DK2  Antique Brass Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock

L19MKSET2-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L19MKSET2-OB2  Oil Rubbed Bronze Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock

A lovely Louis style door set, cast in solid brass.

This is an interior mortise privacy set which locks from one side only using a skeleton key.

Each Set Includes:

• 1 Doorplate with Knob & Keyhole Function
• 1 Doorplate with Knob Only Function
• 2 Doorknobs with the Connecting Spindle
• 1 Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

• Doorplates:  2 ½" wide x 9 ¾" tall.
• Doorknobs:  2 ¼" diameter; projects 2 ¼".
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws are included with each set.
