French Victorian Narrow Door Set with 2 5/8" Backset Mortise Lock (ZL105ML2)
w/ 2 ⅝" Backset Lock
ZL105ML2-PB Polished Unlacquered Brass French Victorian Reproduction Narrow Door Plate Set with Locking Keyed Mortise (2 5⁄8" Backset)
ZL105ML2-DK Antique Brass Finish French Victorian Reproduction Narrow Door Plate Set with Locking Keyed Mortise (2 5⁄8" Backset)
Victorian design, affordable wrought brass door plate set.
This interior mortise passage set locks from both sides using a skeleton key.

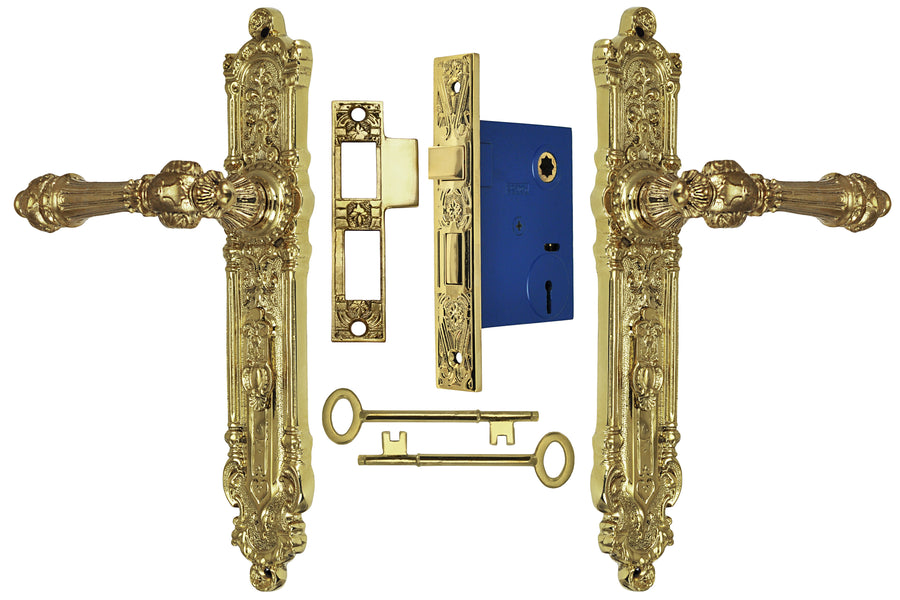

The Complete Set Includes:

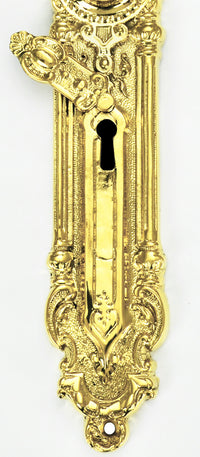

- Two Door Plates with Doorknob & Keyhole Function
- Two French Lever Handles with the Connecting Spindle
- One Mortise Lock with 2 Skeleton Keys
Measurements:
- Door Plates: 1 7⁄8" wide x 10 3⁄8" tall.
- French Lever Handles: 5 ¼" long x 1 ¼" wide; 2 ¾" projection.
-
Mortise Lock:
- Backset: 2 5⁄8"
- Lock Body: 3 ¾" tall x 3 3⁄16" deep, and 5⁄8" thick.
- Faceplate: 1" wide x 6" tall; 3⁄16" thick.
- Strike Plate: 4 ½" tall x 1" wide (plus tongue).
- Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
Mounting screws for the hardware are included with each set.
