Eastlake Door Plate Set with Locking Keyed Mortise Nickel Plated (L36MKKSET-NP)

Eastlake Door Plate Set with Locking Keyed Mortise Nickel Plated
Price: $501.50
Set Door Handing: Left Hand
Finish: Nickel Plated with 2 ¼" Backset

Eastlake Victorian Door Set with Skeleton Keyed Mortise Lock - Nickel Plated

L36MKKSET-NP1  Nickel Plated Door Set with 2 ¼" Backset Mortise Lock
L36MKKSET-NP2  Nickel Plated Door Set with 2 5⁄8" Backset Mortise Lock

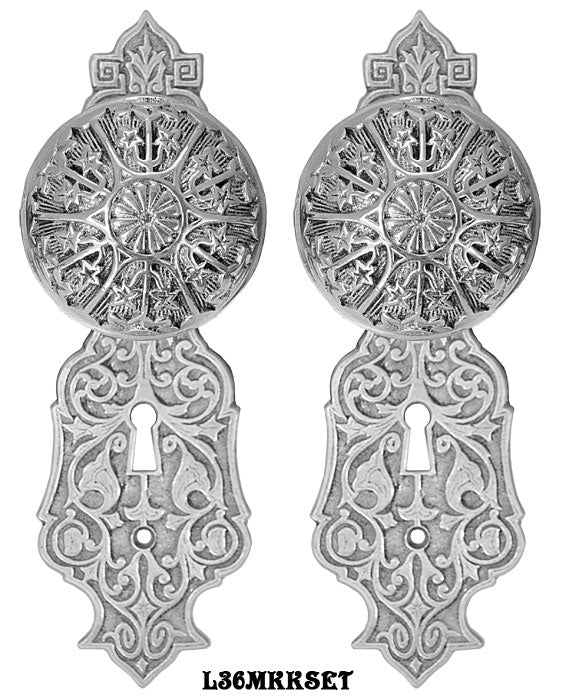

Cast from solid brass Eastlake doorplates, paired with our fabulously designed Eastlake doorknobs.

This is an interior mortise passage set which locks from both sides using a skeleton key.

Each Set Includes:

  • 2 Doorplates with Knob & Keyhole Function
  • 2 Doorknobs with the Connecting Spindle
  • 1 Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 5⁄8" backset)

Measurements:

  • Doorplates:  2 5⁄8" wide x 7 ¾" tall.
  • Doorknobs:  2 ½" diameter; each projects 2 ¼".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 7⁄8" deep x 5⁄8" thick.
      • Faceplate:  1" wide x 6" tall; 3⁄16" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
    • 2 5⁄8" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 3⁄16" deep, and 5⁄8" thick.
      • Faceplate:  1" wide x 6" tall; 3⁄16" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws are included with the hardware for this set.
