Cast Brass Round Knob Passage Set (106KPSET)

Cast Brass Round Knob Passage Set
Price: $357.50
Finish: Polished Brass

106KPSET-PB  Polished Unlacquered Cast Brass Round Knob Passage Door Set

106KPSET-DK  Antique Brass Finish Cast Brass Round Knob Passage Door Set

106KPSET-OB  Oil Rubbed Bronze Finish Cast Brass Round Knob Passage Door Set

The solid brass doorknobs in this set are actually a one piece "unit" with the rosette.  This is seen in many European doorknob sets.  The set uses a steel shaft, with no threads.  Supplied with our 2 3⁄8" backset passage latch.

This is an interior non-locking passage set.

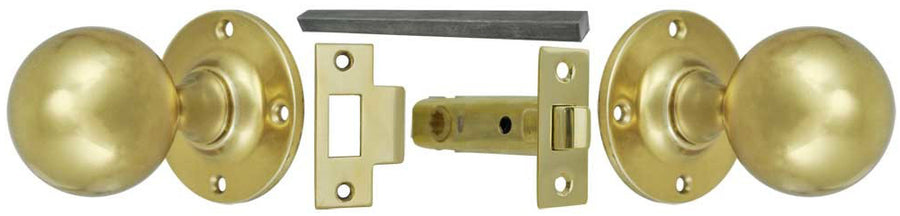

The Set Includes:

  • Two doorknobs with Attached Rosettes
  • One Steel Doorknob Spindle
  • One Tubular Passage Latch

Measurements:

  • Doorknobs:  1 ¾" diameter; each projects 3".
  • Rosette:  2 3⁄16", installed using four screws.
  • Tubular Passage Latch:
    • Backset:  2 3⁄8"
    • Latch Face:  1" wide x 2 ¼" tall.
    • Catch Plate:  1" wide x 2 ¾" tall.
    • Installation:  Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.

Mounting screws are included with the hardware for this set.
