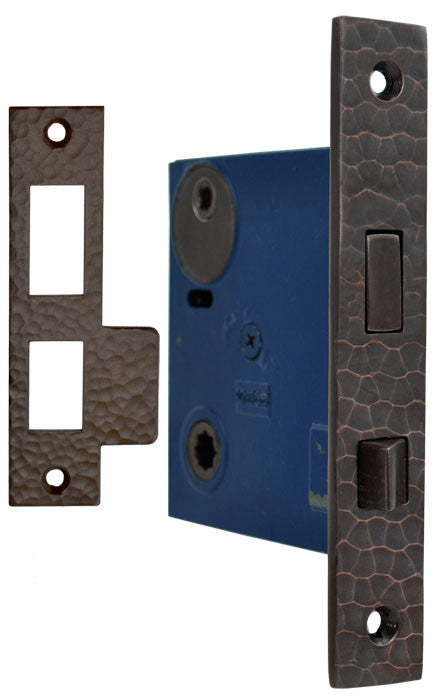

Arts & Crafts Hammered Copper 2 1/4" Backset Mortise Lock Turnlatch Lock (ZC-400TL)

Lock Reproduction Copper Face 2 1/4" Backset Mortise Lock for Arts & Crafts or Mission Style

This is an Arts & Crafts lock to match with the ZC-series door plates. Faceplate and catch are carved from a solid block of copper, then hammered by hand. Lock operation works like silk.

ZC-400TL - Mortise with turnlatch function. Center to center distance from the doorknob receiver to the turnlatch receiver is 2 1/2". Turnlatch is not included, please see our collection of door plates with built in turnlatch knob, such as ZC-19TL . We offer all three Arts & Crafts pattern door plates with a turnlatch option. Look for the "TL" suffix to identify turnlatch door plates.

The faceplate is 6" long by 1" wide. The lock body is 3 3/4" long by about 3" wide (excluding the lip of the faceplate). The lock body is 5/8" thick.
Backset is 2 1/4".

Catchplate is 4 1/2" long by 1" wide (excluding the catchplate tongue).

For a lock with a 2 5/8" backset, please look at ZC-299TL

Reversing instructions can be found here
