Art Nouveau Door Plate Set with Locking Turnlatch Mortise (L63MTSET2)

Art Nouveau Door Plate Set with Locking Turnlatch Mortise
Price: $490.30
Set Door Handing: Left Hand
Finish: Polished Unlacquered Brass with 2 ¼" Backset Mortise Lock

Art Nouveau Privacy Door Set
with Scroll Design Oval Doorknobs & Turnlatch Mortise Lock

L63MTSET2-PB1  Polished Unlacquered Brass Door Set with 2 ¼" Backset Mortise Lock
L63MTSET2-PB2  Polished Unlacquered Brass Door Set with 2 5⁄8" Backset Mortise Lock

L63MTSET2-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L63MTSET2-DK2  Antique Brass Finish Door Set with 2 5⁄8" Backset Mortise Lock

L63MTSET2-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L63MTSET2-OB2  Oil Rubbed Bronze Finish Door Set with 2 5⁄8" Backset Mortise Lock

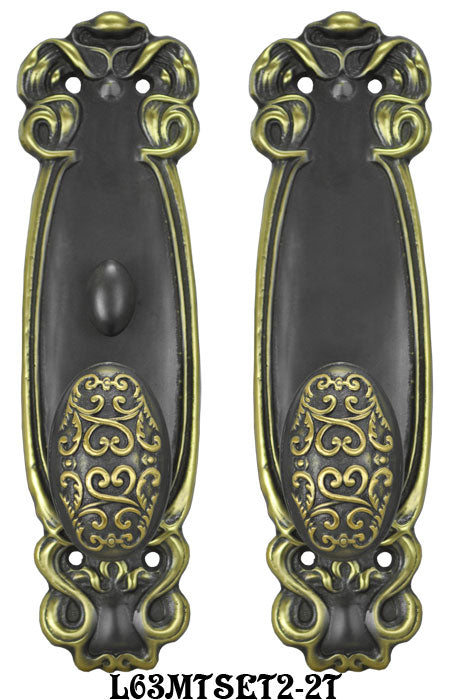

L63MTSET2-2T1  Two-Tone Black & Brass Finish Door Set with 2 ¼" Backset Mortise Lock {PICTURED}
L63MTSET2-2T2  Two-Tone Black & Brass Finish Door Set with 2 5⁄8" Backset Mortise Lock {PICTURED}

This lovely Art Nouveau Series is all solid cast brass.  Art Nouveau was popular from the late 1800's through the Edwardian times in the early 1900's.  Graceful, flowing lines that highlighted the beauty of nature distinguish the style.  This complete set comes with a pair of our solid brass, scroll design oval doorknobs.

This Interior Mortise Privacy Set locks from one side using a turnlatch.

Each Set Includes:

  • 1 Door Plate with Lower Doorknob Only Function
  • 1 Door Plate with Lower Doorknob & Turnlatch Function
  • 2 Doorknobs with the Connecting Spindle
  • 1 Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 5⁄8" backset)

Measurements:

  • Doorplates:  2 ¾" wide x 10" tall.
  • Doorknobs:  2 ¾" tall x 1 ¾" wide; each projects 2 ¼".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 7⁄8" deep x 5⁄8" thick.
      • Faceplate:  1" wide x 6" tall; 3⁄16" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
    • 2 5⁄8" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 3⁄16" deep, and 5⁄8" thick.
      • Faceplate:  1" wide x 6" tall; 3⁄16" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws are included for each piece of hardware in this set.
