Art Nouveau Door Plate Set with Locking Keyed Mortise (L63MKSET)

L63MKSET-PB1  Polished Unlacquered Brass Door Set with 2 ¼" Backset Mortise Lock
L63MKSET-PB2  Polished Unlacquered Brass Door Set with 2 ⁵⁄₈" Backset Mortise Lock

L63MKSET-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L63MKSET-DK2  Antique Brass Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock

L63MKSET-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L63MKSET-OB2  Oil Rubbed Bronze Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock

This lovely Art Nouveau Series is all solid cast brass.  Art Nouveau was popular from the late 1800's through the Edwardian times in the early 1900's.  Graceful, flowing lines that highlighted the beauty of nature distinguish the style.

This is an interior mortise privacy set which locks from one side only using a skeleton key.

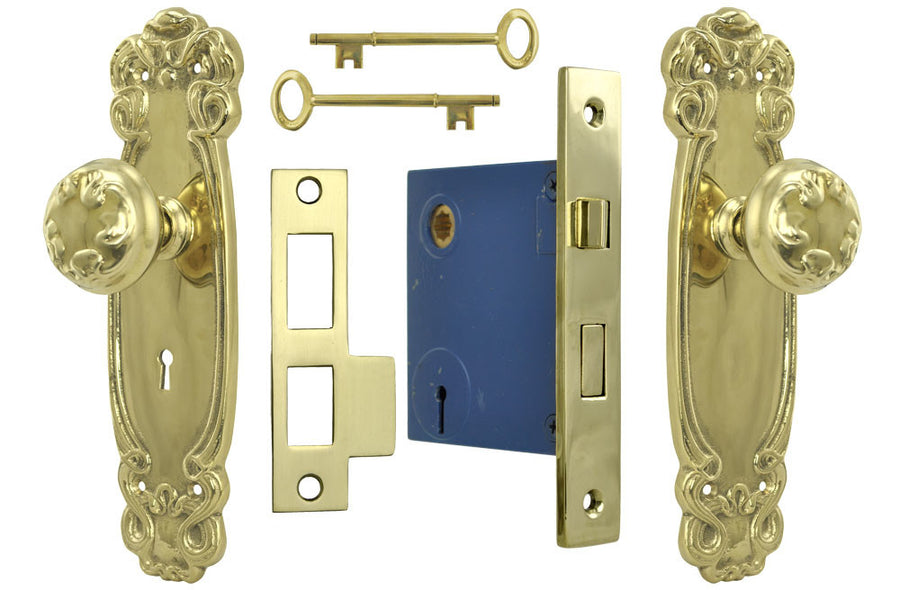

Each Set Includes:

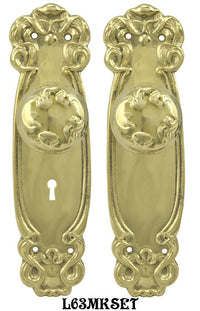

• 1 Doorplate with Knob & Keyhole Function
• 1 Doorplate with Knob Only Function
• 2 Doorknobs with the Connecting Spindle
• 1 Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

• Doorplates:  2 ¾" wide x 10" tall.
• Doorknobs:  2 ¼" diameter; project 2 ¼".
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws are included for each piece of hardware in this set.
