Art Deco Door Plate Entry Mortise Set (Z375SET1)

Z375SET1-PB  Polished Unlacquered Brass Art Deco Door Plate Entry Mortise Set {PICTURED}

Z375SET1-DK  Antique Brass Finish Art Deco Door Plate Entry Mortise Set

Z375SET1-NP  Nickel Plated Art Deco Door Plate Entry Mortise Set

Great Art Deco thumblatch door set!  The cylinder lock is protected behind a decorative cover that lifts open, located at the top of the backplate.

Available in Polished Unlacquered Brass or Nickel Plated brass.

The Complete Door Set Includes:

• One Interior Thumblatch Door Plate with Turnlatch Function
• One Exterior Thumblatch Door Plate
• One Mortise Lock
• One Cylinder Lock:  Please see our Lock Cylinder Size Chart to determine the correct cylinder length for your door.

Measurements:

• Door Plates:  16 ½" tall x 3 ¾" wide x 2 ¹⁄₈" deep.
• Lock Measurements:
  • Lock body measures 5 ½" tall by 3 ⁵⁄₈" deep.  ¹³⁄₁₆" thickness.
  • Backset:  2 ½", including the thickness of the face plate.
  • Lock Face:  1" wide by 7 ½" long.
  • Catch Plate:  4 ⁷⁄₈" long by 1 ⁷⁄₈".
  • Distance from the center of the cylinder receiver to the thumb latch stem is 4 ¾".
  • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ½".

Please see our Lock Cylinder Size Chart to determine the correct cylinder length for your door.

Mounting screws are provided for all pieces of hardware in this set.

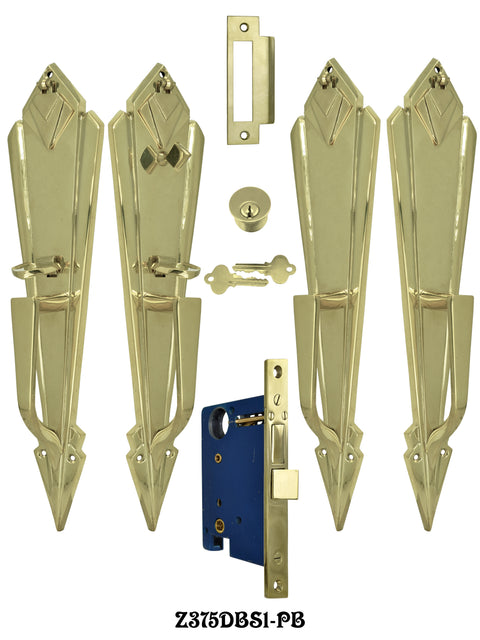

A similar set for French Doors or Double Doors is also listed on our website.
