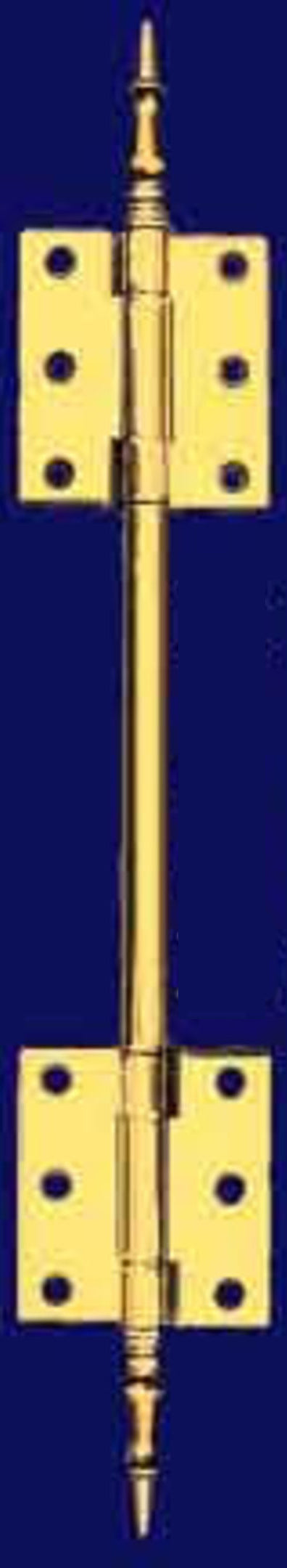

13" Extruded Barrel Hinge (H-90M)

Choice of Finish

H-90M  Polished Unlacquered Brass  13" Extruded Barrel Hinge

H-DK90M  Antique Brass Finish  13" Extruded Barrel Hinge

H-OB90M  Oil Rubbed Bronze Finish 13" Extruded Barrel Hinge

This extruded barrel hinge is difficult to produce properly.  Ours is a fully swaged barrel hinge made from solid extruded brass.  NO cheap castings, nor white metal, nor plated steel.  A heritage-quality hinge for your special project.

Can be used on both left and right hand doors.  Sold by the each.

Measurements:

• Length:   13" long overall.
• Leaf Measurements:  2 ¼" by ¾"
• Distance between the leaves is 4 ¾".
• Barrel Diameter:  A bit over ³⁄₈", measuring at ⁷⁄₁₆".

All hinge leaves are fully swaged.

For fully swaged hinges without the barrel, please see our H-91.
